Twin Disc Clutch

since its pretty new and not much info on the twin disc im going to put together a DIY with some info thats not really out there............sticky?

here is a few pics of the twin disc and flywheel:






here are some pictures compairing the twin disc to the spec stage 5 and spec/fedanza i took out:

look how much smaller and lighter the NGM flywheel is compared to the other "lightweight" flywheel





i did my clutch swap with pulling the motor and tranny together
after seperating the tranny remove old clutch and flywheel and bolt on new flywheel, TQ to specs for your car.
spray down the flywheel with brake and parts cleaner very well and wipe clean with NEW white lint free towel. and dont touch it with anything again
spray all parts of the new clutch,both sides of both disc's, wipe down with another NEW lint free white towel.either get some new loves or use other new lint free towels to handle all the parts, reassemble clutch disc's and pressure plate and bolt to the the flywheel
be sure to have both discs lined up before bolting down the pressure plate
i had a hard time getting them to line up even with my alining tool. ended up i just used my finger so i could feel both discs and when right together.
if you have an alining tool it should freely slide through both discs with zero binding at all or the tranny will not slide on fully
TQ to specs , i did 20 FT pounds
[img]http://***************.com/images/mini-DSC02801.JPG[/img]
[img]http://***************.com/images/mini-DSC02803.JPG[/img]

old spec 5 for referance

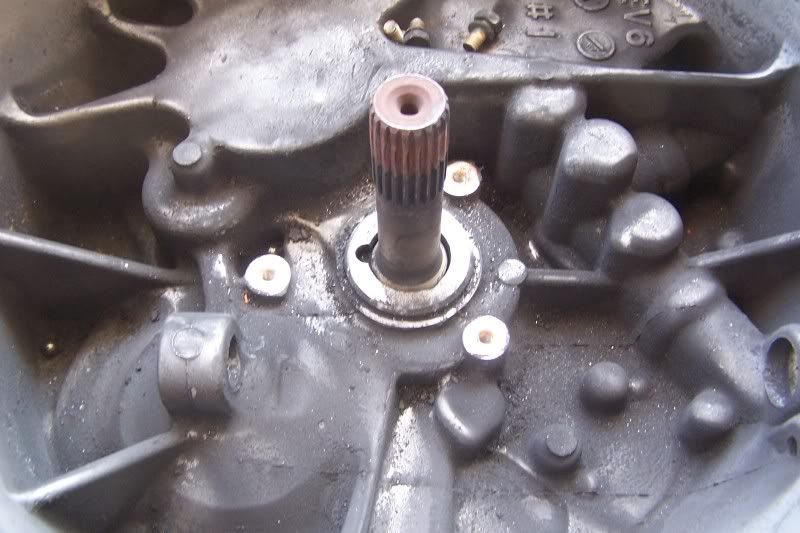

now to the transmission........
remove the 3 bolts and factory bearing cup

use factory bolts and bolt on the new throw out bearing


run both supplied braide lies out of the old fork hole used for the factory clutch




bolt everything back together the reinstall.
one of the braided lines is for bleeding the system


after bleeding i just ziptied it down


the other line comes with needed adaptor and conects to the existing clutch line just like factory


go drive it and have fun

glenn smeby

V6 tibby , NGM race block , 2 stages of spray
To view links or images in signatures your post count must be 5 or greater. You currently have 0 posts.

93 gmc typhoon, GMC's super sleeper
68 chevy impala........low and slow cruiser
8.1@91mph 1/8th mile on drag radials with the tib
8.3@80mph 1/8th mile in the typhoon, 4100pounds of V6 fun
smebysound is offline
Sponsored Links
Advertisement

#2 Old 06-17-2009, 01:04 AM
NewTiburon.com God

White Escort 1.9's Avatar

Join Date: Jul 2008
Location: Clinton Twp. Michigan
Posts: 1,270
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
White Escort 1.9 will become famous soon enough
Re: smebyspeeds twin disc DIY

So is this NGM's twin disk clutch?


To view links or images in signatures your post count must be 5 or greater. You currently have 0 posts.
White Escort 1.9 is offline
#3 Old 06-17-2009, 07:48 AM
NewTiburon.com Professional

smebysound's Avatar

Join Date: Jan 2004
Location: panama city fla
Posts: 605
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
smebysound is an unknown quantity at this point
(Thread Starter)
Re: smebyspeeds twin disc DIY

yeapers

glenn smeby
V6 tibby , NGM race block , 2 stages of spray
To view links or images in signatures your post count must be 5 or greater. You currently have 0 posts.

93 gmc typhoon, GMC's super sleeper
68 chevy impala........low and slow cruiser
8.1@91mph 1/8th mile on drag radials with the tib
8.3@80mph 1/8th mile in the typhoon, 4100pounds of V6 fun
smebysound is offline
#4 Old 11-24-2009, 10:53 PM
Dedication to Thai Cuisine

breeechan's Avatar

Join Date: Jul 2006
Location: Colorado
Posts: 7,634
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
breeechan has much to be proud ofbreeechan has much to be proud ofbreeechan has much to be proud ofbreeechan has much to be proud ofbreeechan has much to be proud ofbreeechan has much to be proud ofbreeechan has much to be proud ofbreeechan has much to be proud ofbreeechan has much to be proud ofbreeechan has much to be proud ofbreeechan has much to be proud of
Re: smebyspeeds twin disc DIY

Great info here, thanks for all the pics and comparisons.

Lightest DD tib? 2593 lbs and falling

Quote:
Originally Posted by Shadow Blue View Post
I wish I had 5 Guys inside of me right now...
Quote:
Originally Posted by Takahashi240 View Post
That is pretty much how I felt the first time I had Five Guys...
breeechan is offline
#5 Old 11-21-2010, 02:53 PM
NewTiburon.com Novice

hamrhead's Avatar

Join Date: Jun 2007
Location: Toronto
Posts: 111
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
hamrhead
Re: DIY: Twin Disc Clutch

the twin disk she`s a beuty, my stock clutch is near toasted will need a new one very soon.
hamrhead is offline
#6 Old 02-24-2011, 11:07 AM
NewTiburon.com Professional

Join Date: Jan 2011
Location: Beckley
Posts: 702
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
jonvia
Re: DIY: Twin Disc Clutch

i cant find what the torque specs for my car. I have the 2005 GS. I have the 9.6 pound flywheel. i need the torque specs for it lol.idk anything about clutches at all
jonvia is offline
#7 Old 04-27-2012, 02:41 PM
NewTiburon.com God

M.Kyle's Avatar

Join Date: Jun 2010
Location: Roy, Utah
Posts: 2,725
Mentioned: 14 Post(s)
Tagged: 1 Thread(s)
M.Kyle is just really niceM.Kyle is just really niceM.Kyle is just really nice
Re: DIY: Twin Disc Clutch

Quote:
Originally Posted by jonvia View Post
i cant find what the torque specs for my car. I have the 2005 GS. I have the 9.6 pound flywheel. i need the torque specs for it lol.idk anything about clutches at all
Here you go!!

Clutch pedal free play
6~13 mm (0.24~0.52 in.)

TIGHTENING TORQUE
Item - lb·ft
Clutch pedal to pedal support member
(Clutch pedal bracket) 14~20
Clutch pedal support member to master cylinder 6~7
Clutch tube flare nut 9~13
Clutch tube bracket 3~4
Reservoir band 9~13
Clutch release cylinder 11~16
Clutch release cylinder union bolt 15~18

Clutch cover assembly
Single mass flywheel 11~16
Dual mass flywheel 14~19

Apply multipurpose grease to the release bearing contact surfaces and the release cylinder contact surface of the clutch release fork assembly.
Apply multipurpose grease into the groove of the release bearing.
Apply multipurpose grease to the clutch release lever fulcrum contact surface of the clutch release fork assembly.
Clean the surfaces of the flywheel and pressure plate thoroughly with fine sandpaper or crocus cloth, and make certain that all oil or grease has been removed.
Apply a small amount of multipurpose grease to the clutch disc splines and input shaft splines.

But! Do not apply more grease than necessary. Too much grease could cause clutch slip or judder.
From HMA

Fidanza, SPEC Stg3, Stg4 LIM, Thermal Intake Gasket, DC Rear Strut Bar, 6000k HIDs , CCFL AEs, Basstib STS, Racelands, Camber Bolts, AEM FIC, WOT Box, eBay Headers, Hi-Flow Cat, TWM Bushing Kit, 94a Poly MMs, Battery Relocation, Triple Gauge Pillar(AFR, Boost/Vac, Oil Pressure)Soon: Turbo, Exhaust Cutout, Eibach Rear Sway Bar
Feel free to pm with questions!

To view links or images in signatures your post count must be 5 or greater. You currently have 0 posts.
M.Kyle is online now
#8 Old 01-23-2013, 07:59 PM
NewTiburon.com Newbie

Join Date: Sep 2012
Location: Texas
Posts: 8
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
TiburonGTs is an unknown quantity at this point
Re: DIY: Twin Disc Clutch

https://www.youtube.com/watch?v=dKoC...e_gdata_player
Could you guys help me out, is it normal to have free,play on the flywheel?
TiburonGTs is offline
#9 Old 01-28-2013, 09:31 PM
NewTiburon.com Novice

Bluetibu's Avatar

Join Date: Jun 2012
Location: North Texas
Posts: 251
Mentioned: 0 Post(s)
Tagged: 0 Thread(s)
Bluetibu is an unknown quantity at this point
Re: DIY: Twin Disc Clutch

I Was burning thru clutches in my cobra; spec3 and centerforce hd lasted the longest ; the puck style clutch lasted a month,, piece of junk and grabby. Finally dumped the cash for a twin disk and it was the best choice I ever made.
I was given the choice of a metal or plastic insert; I think I went metal and had no noise issues.
Very streeatable and hooked extremely well. No chirping TOB after 3 months either.
Think it was a centerforce twin disk. Who is making the twin disk for tiburon?
How much are you spraying? Factory pistons?

04 Tuscani
03 Cobra SVT
05 Powerwagon
05 Suburban Z71
Bluetibu is offline
#10 Old 10-19-2013, 03:52 PM
NewTiburon.com Novice

Join Date: Jun 2011
Location: Raleigh, NC
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
rlawson55
Re: DIY: Twin Disc Clutch

Quote:
Originally Posted by TiburonGTs View Post
https://www.youtube.com/watch?v=dKoC...e_gdata_player
Could you guys help me out, is it normal to have free,play on the flywheel?
Since nobody answered your question about free play on the flywheel, I just want to give you my observation.

It looks like you have a dual mass flywheel which is usually to smaller flywheels connected with springs in between.

I'm not sure if there should be free play, but I wouldn't think so. The springs are made to absorb the vibrations that travel from the engine to the input shaft that goes into the transmission.

I would recommend your place that flywheel with either another dual mass flywheel of OEM specification, or you replace it with an aftermarket lightweight flywheel.
rlawson55 is offline
#11 Old 11-09-2013, 12:33 AM
NewTiburon.com Novice

Join Date: Jun 2011
Location: Raleigh, NC
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
rlawson55
Re: Twin Disc Clutch

I think the twin disk is a product of NGM, but you can get one from several manufacturers.
rlawson55 is offline
#12 Old 11-09-2013, 12:40 PM
NewTiburon.com Professional

Join Date: Jan 2005
Location: ND
Posts: 998
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
shady will become famous soon enough
Re: Twin Disc Clutch

Quote:
Originally Posted by rlawson55 View Post
I think the twin disk is a product of NGM, but you can get one from several manufacturers.
The twin disk is NGM and you can't get it anywhere else including NGM.
shady is offline
#13 Old 11-09-2013, 05:29 PM
NewTiburon.com Novice

Join Date: Jun 2011
Location: Raleigh, NC
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
rlawson55
Re: Twin Disc Clutch

Quote:
Originally Posted by shady View Post
The twin disk is NGM and you can't get it anywhere else including NGM.
There are several companies that make twin disk setups. You will have to talk to them about your specific vehicle.

For example, my SPEC clutch disk was custom made for my vehicles input shaft.
rlawson55 is offline
#14 Old 11-09-2013, 07:01 PM
NewTiburon.com Professional

Join Date: Jan 2005
Location: ND
Posts: 998
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
shady will become famous soon enough
Re: Twin Disc Clutch

Quote:
Originally Posted by rlawson55 View Post
There are several companies that make twin disk setups. You will have to talk to them about your specific vehicle.

For example, my SPEC clutch disk was custom made for my vehicles input shaft.
That's great that you can get a twin for another car. You can't for a tiburon regardless of who you call. Perhaps trust someone with more experience.
shady is offline
#15 Old 11-09-2013, 07:09 PM
NewTiburon.com Novice

Join Date: Jun 2011
Location: Raleigh, NC
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
rlawson55
Re: Twin Disc Clutch

We don't have to get a clutch for the "tiburon", per se. Only for the specific transmission we're running.

I have a 6 speed which uses the MFA60 transmission. This specific tranny is in a multitude of cars.

Clutches aren't car specific. They're tranny specific.
rlawson55 is offline
#16 Old 11-09-2013, 07:12 PM
NewTiburon.com Novice

Join Date: Jun 2011
Location: Raleigh, NC
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
rlawson55
Re: Twin Disc Clutch

I meant to say "I have a 2006 6-speed"*
rlawson55 is offline
#17 Old 11-09-2013, 07:25 PM
NewTiburon.com Professional

Join Date: Jan 2005
Location: ND
Posts: 998
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
shady will become famous soon enough
Re: Twin Disc Clutch

Quote:
Originally Posted by rlawson55 View Post
I meant to say "I have a 2006 6-speed"*
Yes, but you're spec is not a twin disk and making a twin for a car vs. a single is another monster.
shady is offline
#18 Old 11-09-2013, 07:48 PM
NewTiburon.com Novice

Join Date: Jun 2011
Location: Raleigh, NC
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
rlawson55
Re: Twin Disc Clutch

I know. I didn't say my spec was. I was saying that twin disk clutches are made for other vehicles that use my transmission.
rlawson55 is offline
#19 Old 11-10-2013, 09:26 AM
NewTiburon.com Professional

Join Date: Jan 2005
Location: ND
Posts: 998
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
shady will become famous soon enough
Re: Twin Disc Clutch

Quote:
Originally Posted by rlawson55 View Post
I know. I didn't say my spec was. I was saying that twin disk clutches are made for other vehicles that use my transmission.
Once again that means nothing. They won't fit the tib and the company won't modify it to fit the tib so don't post up saying plenty of twins are available just call the company. I have a twin and prior to that called every major clutch company and offered them whatever money they wanted to build me a twin. Everybody said no except clutch masters who promised me they had built a couple for the tib prior. I payed and 4 months later they came back and said they can't make it fit. This was when the tib was actually popular and had an aftermarket. Not a chance in hell these days.
shady is offline
#20 Old 11-11-2013, 01:12 AM
NewTiburon.com Novice

Join Date: Jun 2011
Location: Raleigh, NC
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
rlawson55
Re: Twin Disc Clutch

WoW! Umm.. chill, it's only a clutch.

You totally misunderstood my comment, I said call companies that make twins and see if the have one that will fit a MFA60, because Tibs are not the only car that uses them.

Next time, call Excedy. Looks like them manufacture them for many cars. They may have one that fits.

As a matter o fact, I'll do it tomorrow, just outta curiosity. I'll report back what they say.
rlawson55 is offline
#21 Old 11-11-2013, 10:21 AM
NewTiburon.com Professional

Join Date: Jan 2005
Location: ND
Posts: 998
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
shady will become famous soon enough
Re: Twin Disc Clutch

Quote:
Originally Posted by rlawson55 View Post
WoW! Umm.. chill, it's only a clutch.

You totally misunderstood my comment, I said call companies that make twins and see if the have one that will fit a MFA60, because Tibs are not the only car that uses them.

Next time, call Excedy. Looks like them manufacture them for many cars. They may have one that fits.

As a matter o fact, I'll do it tomorrow, just outta curiosity. I'll report back what they say.
K. Make sure you tell them you want a custom flywheel and custom TOB with that. And tell them you just wanna order 1. cheers.
shady is offline
#22 Old 11-11-2013, 02:57 PM
NewTiburon.com Novice

Join Date: Jun 2011
Location: Raleigh, NC
Posts: 124
Mentioned: 1 Post(s)
Tagged: 0 Thread(s)
rlawson55
Re: Twin Disc Clutch

OK. So according to the company that bought NGM, Clutchmasters, and Exedy, the clutch depends on the TRANSMISSION and ENGINE combination. Not the vehicle.

However, without regards to your childish and snippy attitude, the new owners of NGM told me they can still get twin disk clutches. You were wrong in your statement that they're gone.

So, put that in your pipe and smoke it.

Thank and Have a nice day **in an Indian voice**
rlawson55 is offline
#23 Old 11-11-2013, 03:54 PM
NewTiburon.com Professional

Join Date: Jan 2005
Location: ND
Posts: 998
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
shady will become famous soon enough
Re: Twin Disc Clutch

Quote:
Originally Posted by rlawson55 View Post
OK. So according to the company that bought NGM, Clutchmasters, and Exedy, the clutch depends on the TRANSMISSION and ENGINE combination. Not the vehicle.

However, without regards to your childish and snippy attitude, the new owners of NGM told me they can still get twin disk clutches. You were wrong in your statement that they're gone.

So, put that in your pipe and smoke it.

Thank and Have a nice day **in an Indian voice**
No kidding the clutch depends on the engine and transmission to properly mate. So you think the years it took for the Tib community to get NGM to produce a custom clutch we never had the bright idea to see if there was another application that would fit? Thanks for the enlightenment. As for NGM/Fiebruz they are essentially the same. Multiple people tried to get a twin disk in the past and never could (Mayom) so I doubt they have extra clutches laying around. Did they also have the custom throw out bearing on the shelf? Interesting how so many people want this clutch but none can get it. Sorry bud, they told you they have them (just like CM told me) believe you when it's at your door.
shady is offline
#24 Old 11-11-2013, 03:58 PM
NewTiburon.com Professional

Join Date: Jan 2005
Location: ND
Posts: 998
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
shady will become famous soon enough
Re: Twin Disc Clutch

Also, the clutch isn't hard to get. It's in stock at powertrain. The custom cut flywheels and throw out bearings were the limited pieces so yeah technically they probably can get you a "clutch."
shady is offline
#25 Old 11-11-2013, 04:06 PM
NewTiburon.com Professional

Join Date: Jan 2005
Location: ND
Posts: 998
Mentioned: 10 Post(s)
Tagged: 0 Thread(s)
shady will become famous soon enough
Re: Twin Disc Clutch

And for the good of the community please post the year and name of a vehicle that has the 2.7l delta with our 6 speed transmission and compatible twin disk clutch, fw, and throw out bearing so people can buy them. Thanks.
